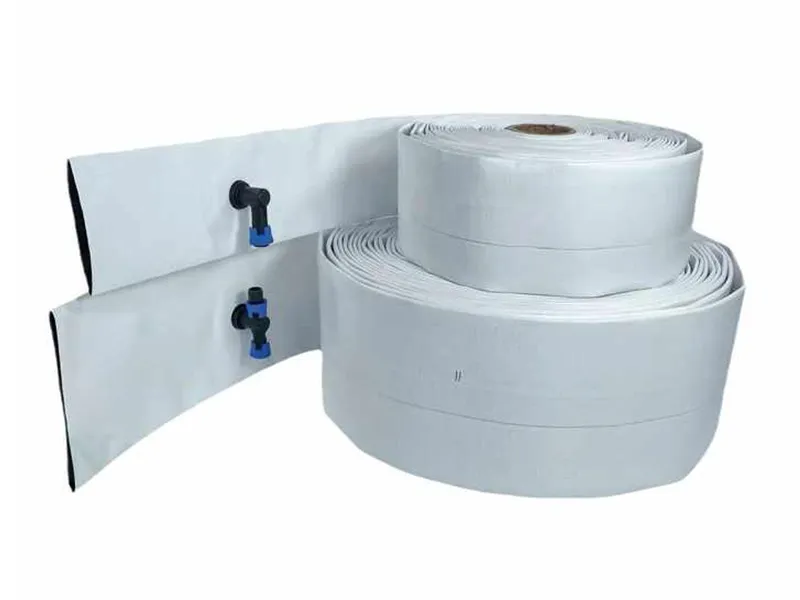

Pre-Punched Layflat Hose

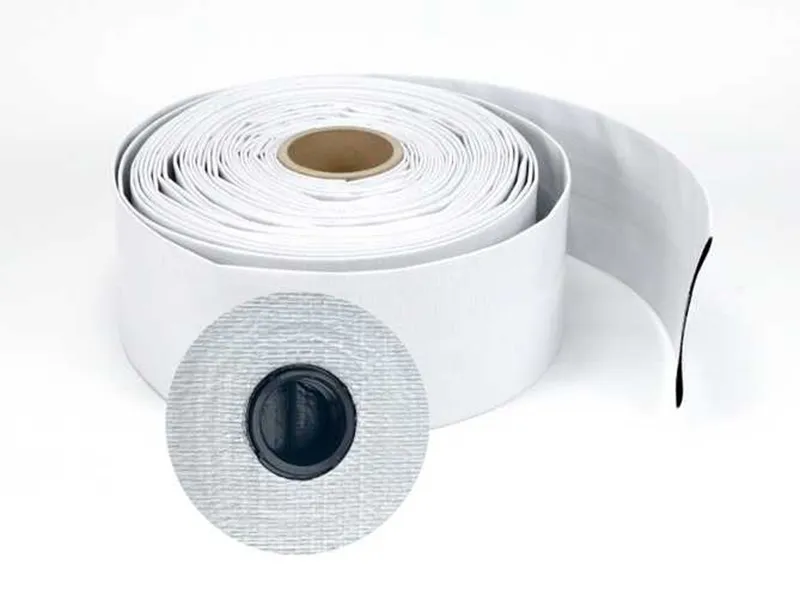

PE woven layflat hose with pre-punched outlet holes
Pre-punched layflat hoses are widely used in irrigation, water transfer, and construction fluid delivery applications. When not in operation, the hose remains completely flat, making it easier to store, transport, and handle in the field. The pre-punched outlet holes are already integrated along the hose length, allowing quick connection to fittings or branch pipes without additional drilling, helping users save time and improve installation efficiency. It delivers excellent pressure resistance, supports larger flow capacity with its wide diameter design, and provides stable, reliable water delivery across long irrigation runs.
The hose is manufactured using polyethylene composite braided fabric, and adopts a five-layer reinforced braided structure, offering superior durability, UV resistance, abrasion resistance, and algae resistance. This ensures long service life and dependable performance in demanding agricultural environments.

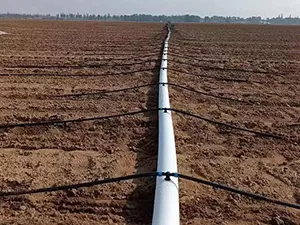

The pre-punched layflat hose eliminates the need for manual drilling and offers strong pressure resistance, making it highly suitable as a main water supply line for large farmland irrigation systems. It performs reliably under both high and low pressure conditions and can be used as the primary pipeline for drip irrigation and sprinkler irrigation setups. It is widely used in orchards, vegetable farms, flower planting bases, as well as urban parks and landscape irrigation projects, providing efficient and convenient water delivery across diverse agricultural and landscaping environments.
| Pipe diameter (mm) | 63/75/90/110 |
| Working pressure | Standard: 2kg; Reinforced: 3kg |
| Hole spacing | 50/60/90/120/150cm |
| Meters per roll | 100m/roll |
Minimum Order & Sample Policy
- For standard hose diameters, the minimum order quantity is 5 rolls. For non-standard or special diameters, the minimum order is half a container.
- Free samples are available for testing. Samples are provided in standard diameters and standard hole spacing, while shipping costs should be borne by the customer. Custom hole spacing is generally available between 500 to 1500 mm, and other special spacing options can be discussed upon request.

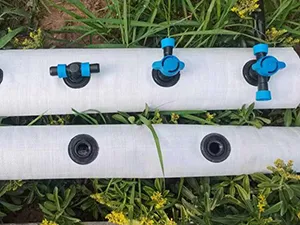

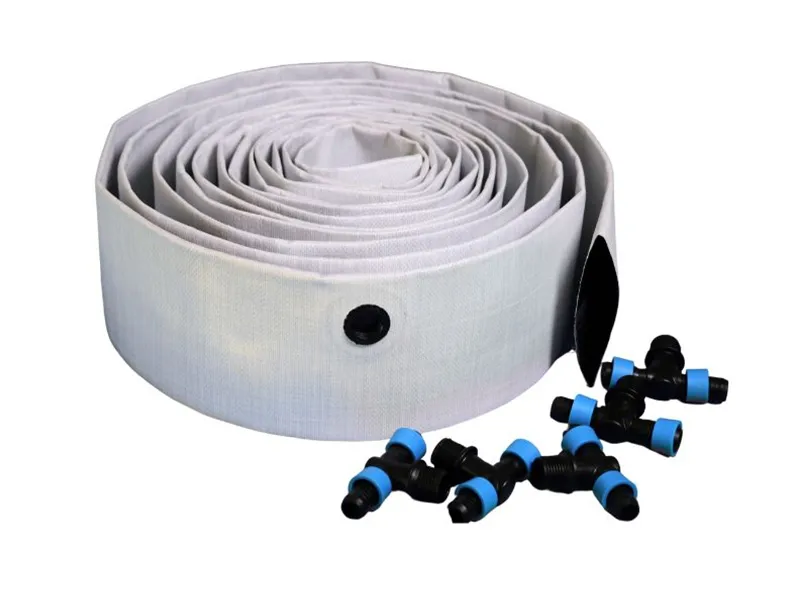

- The hose can be equipped with integrated welded outlet fittings with 16 mm internal threads, making it compatible with 16 mm externally threaded tees, elbows, starter connectors, and end plugs, ensuring easy and secure installation.

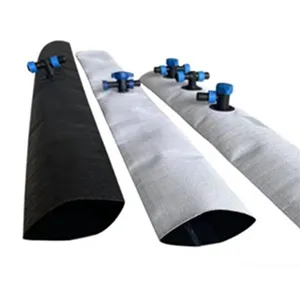

Durable performance
Scratch-resistant, anti-aging, and low expansion rate, easy to lay even across large fields

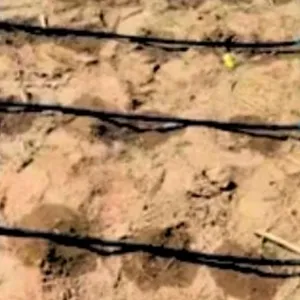

Uniform irrigation
Easily supports low-pressure irrigation systems such as drip and micro-spray with irrigation uniformity deviation below 15%, helping ensure consistent water delivery

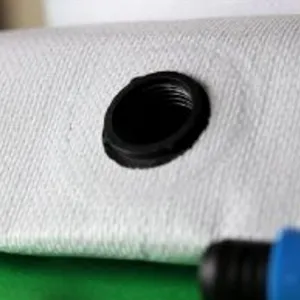

Algae-resistant and light-blocking design
The white outer layer and black inner layer design helps block light penetration and prevents algae growth inside the hose. It also helps reduce heat absorption in hot climates, keeping water temperature more stable.

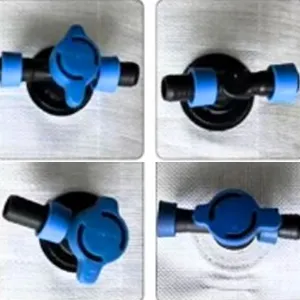

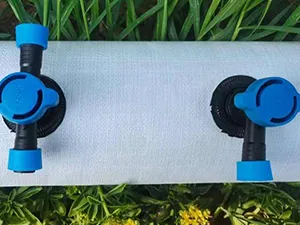

Flexible connection options
No manual drilling required, factory pre-punched holes allow free spacing combinations
Threaded connector components enable quick, one-second installation

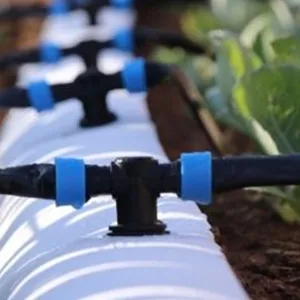

Tight and reliable sealing

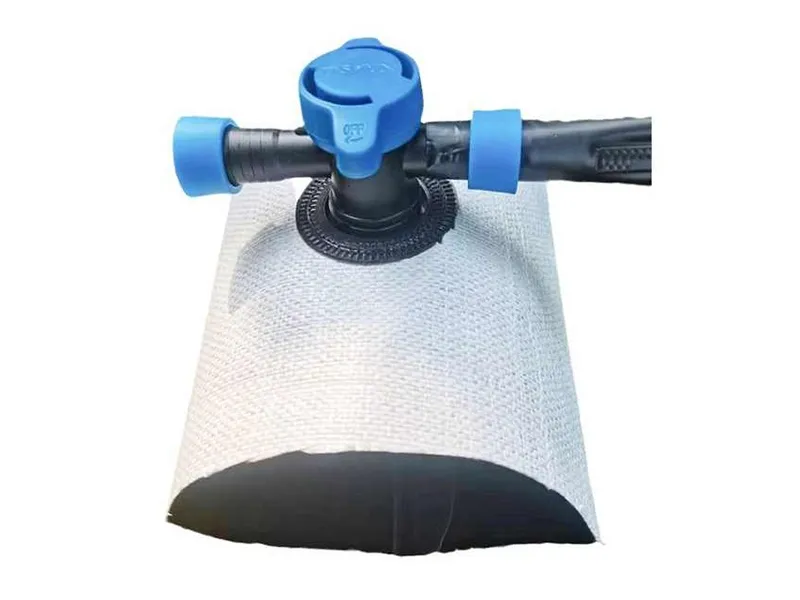

Bypass valves connect firmly with the flexible hose, reducing the risk of leakage or damage

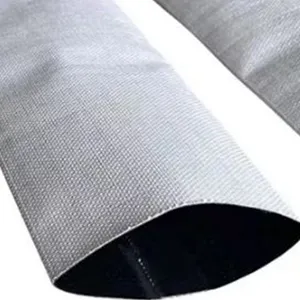

Abrasion and tensile resistance
Made from high-strength, flexible, and wear-resistant material to withstand repeated reuse. Stable performance even after multiple seasons of field operation and long-term outdoor exposure.

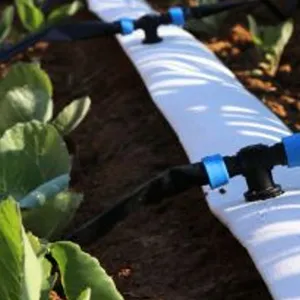

Pre-punched layflat hose advantages
Excellent sealing, quick branch pipe connection, easy to disassemble, convenient to rewind, and reusable

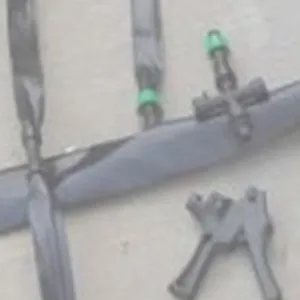

Compared with ordinary PE hoses
Traditional hoses require manual drilling, are prone to leakage, spacing accuracy depends heavily on user experience, and installation takes more time. Our layflat hose eliminates these issues and makes operation much easier.

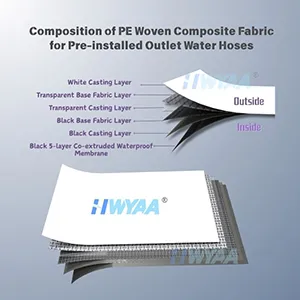

- The hose is made with a five-layer composite braided fabric, delivering superior durability, UV resistance, abrasion resistance, and algae resistance for long-term outdoor use.
- We design and build our own equipment and operate our own production facility, ensuring reliable quality control and strong technical capability. High customization flexibility is available to meet different application needs.
To help customers experience the advantages of new products, support farmers with better irrigation solutions, and build confidence among new users, we also provide product supply alongside equipment solutions.
If you need products or production lines, feel free to contact us.
