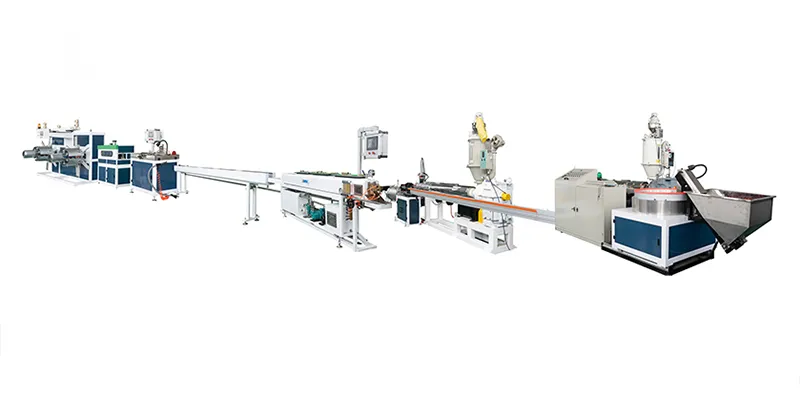

Round Dripper Irrigation Pipe Making Machine
Polyethylene pipe extrusion line for producing dripline with high-clog resistance cylindrical emitters
Video
Round dripper irrigation pipe is named for its inlaid cylindrical emitters integrated inside the pipe wall. With advantages including uniform water discharge, long laying length, strong anti-clogging performance, and simple installation, this type of drip tape is widely applied in agriculture, ecological restoration, landscape irrigation, and greenhouse cultivation.

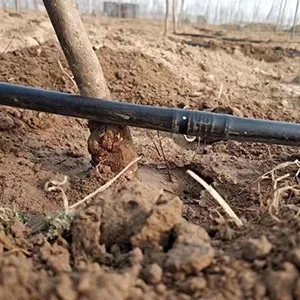

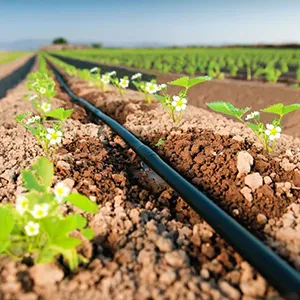

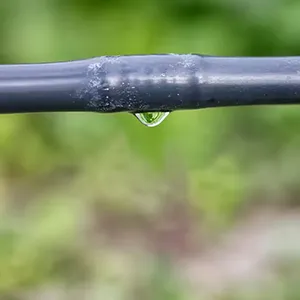

Product Applications
Main Components

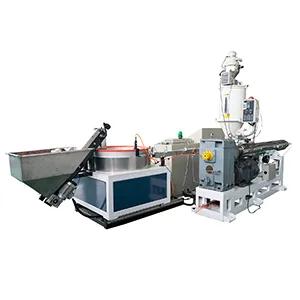

Dripper sorting disc , dripper conveying unit and extruder

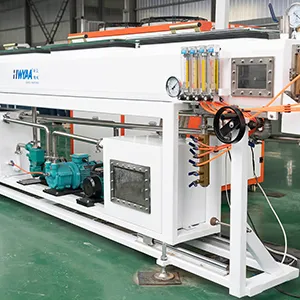

Vacuum sizing water tank

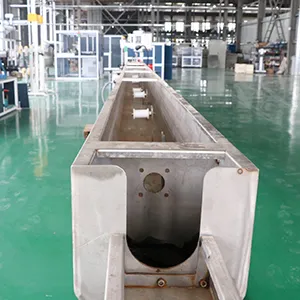

Cooling water tank

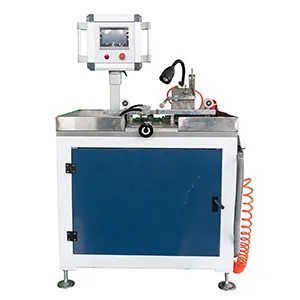

Punching unit
Haul-off unit

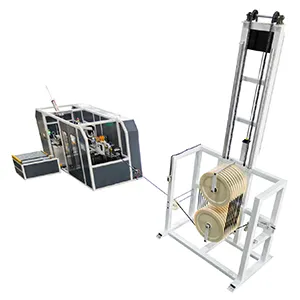

Pipe storage rack and fully automatic coiling and strapping system
Technical Parameters
- ItemSpecification
- Max. production speed80/120m/min
- Production line speedMedium:40-50m/min; High:50-100m/min
- Emitter maximum screening speed500pcs/min
- Emitter inlaid speed500pcs/min
- Hauling speed120m/min
- Punching speed300pcs/min
- Dripper spacing100/200/300/400/500/1000/1500mm
- Inside diameter12/16/20mm
- Wall thickness0.4-1.0mm
- Tolerance±0.05mm
Key Features
- Wide application range
Suitable for various irrigation scenarios, including field crops and fruit tree cultivation. - Water and energy efficiency with yield improvement
Water-saving efficiency of up to 85%, energy savings exceeding 65%, and yield improvement of more than 30% can be achieved through drip irrigation. - Cost-effective solution
Designed for economical deployment, supporting large-scale adoption in modern agricultural irrigation projects.
- Customizable punching configurations
Supports single-hole, double-hole, triple-hole, and quadruple-hole punching options.

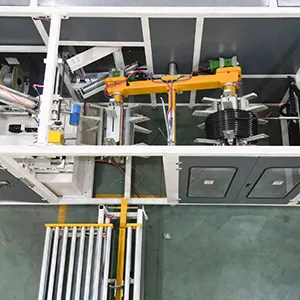

- Flexible automation levels
Available with dual-station automatic coiling with manual reel change, or fully automatic coiling, reel change, strapping, and stacking systems, allowing configuration based on automation needs.
Projects
A round dripper irrigation pipe making machine project with a customer in Iraq.
Founded in 2010 and backed by 30 years of industry expertise, HWYAA is an experienced manufacturer specializing in irrigation pipe and plastic film blowing machinery. We hold ISO9001:2015 certification and 40+ patents, delivering, high-performance plastic extrusion lines and blown film machines to clients across the Middle East, Southeast Asia, Europe, and the Americas.
