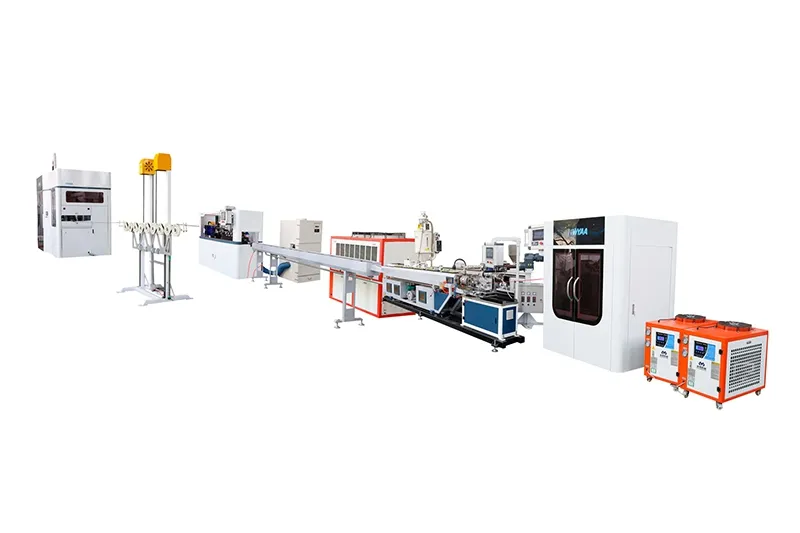

Continuous Strip Dripper Drip Tape Making Machine
Polyethylene pipe extrusion line for producing T-tape drip tape with continuous labyrinth

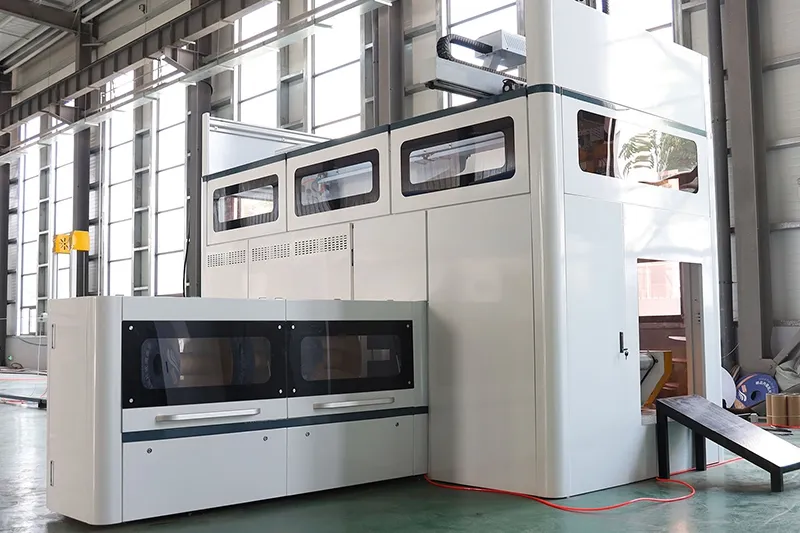

The continuous strip dripper drip tape making machine is a high-speed, automatic inlaid extrusion system designed for the integrated production of T-tape drip tape with continuous labyrinth drippers. Operating at speeds of up to 300m/min, the production line enables continuous processing from dripper inlaying to finished tape packaging, delivering high efficiency and stable output. The production line features stable operation and precise punching control, ensuring consistent product quality while maintaining ease of installation and maintenance. It is capable of producing drip tape composed of PE hose and inlaid continuous strip drippers, with flow path spacing adjustable through a precision pressing mechanism.

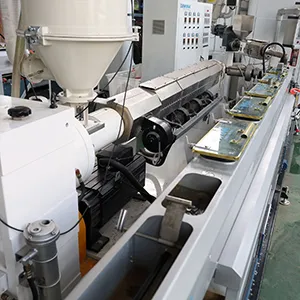

Extrusion

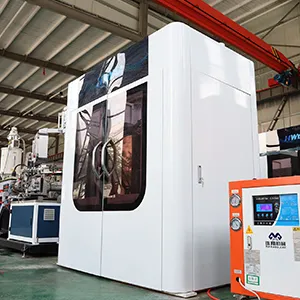

Inlaid continuous strip dripper forming

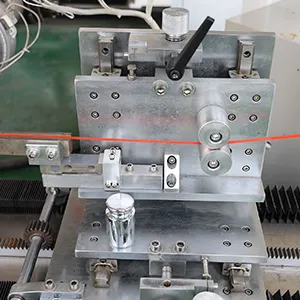

Inlaid continuous strip dripper conveying

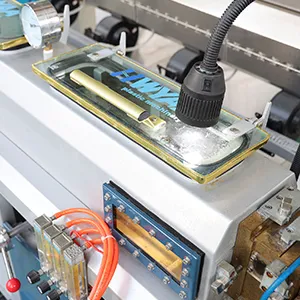

Vacuum sizing

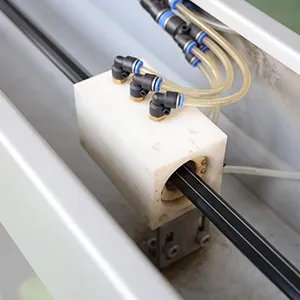

Water cooling

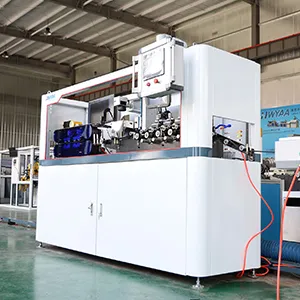

Haul-off and punching

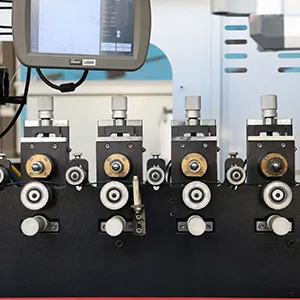

Video inspection

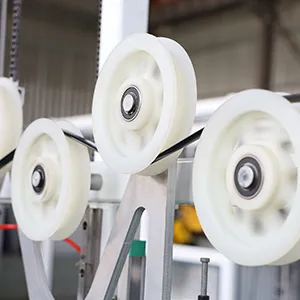

Traction unit

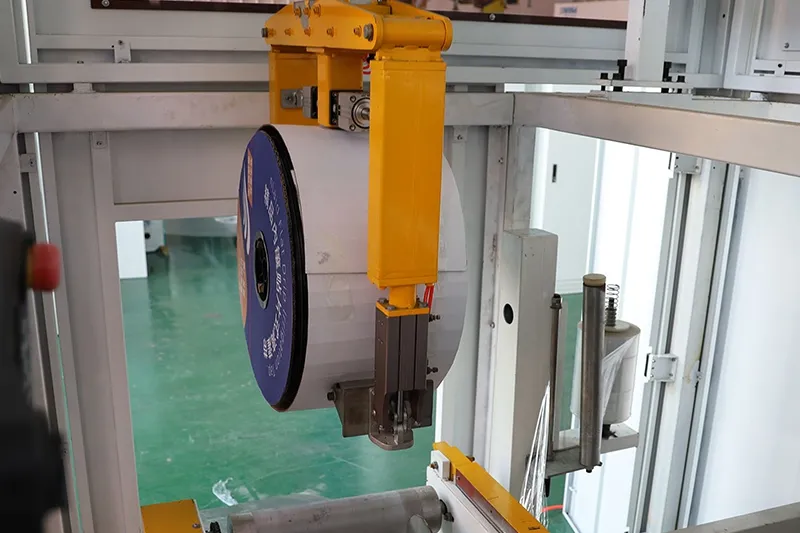

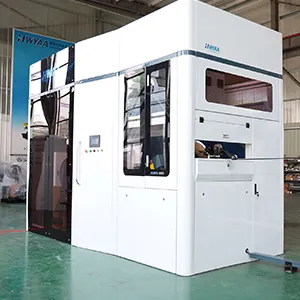

Fully automatic coiling and packaging system
| Designed dripper discharge | Dripper spacing | Pipe I.D. | Wall thickness | Production speed | Punching speed |
| 0.8-3.0L/h | 50-300mm | 16mm | 0.127-0.6mm | 200-300m/min | ≥3000pcs/min |
| Item | 1st generation | 2nd generation | 3rd generation |
| Forming method | Steel strip forming | Large wheel forming | Small wheel forming |
| Material | Stainless steel | Mold-grade tool steel | HWYAA proprietary steel |
| Advantages & disadvantages | Easy to break, short service life, large flow variation | High cost for flow pattern change, long pattern cycle per wheel, large flow variation | Low cost for flow pattern change, short pattern cycle per wheel, stable flow |
| Forming wheel diameter | 500mm | 1000mm | 63mm |
| Production speed | 50-100m/min | 80-200m/min | 80-300m/min |
| Min. outlet spacing | 150mm | 50mm | |
| Extrusion strip die | Fixed | 3D adjustable | |
| Composite pressure | Not adjustable | Adjustable pipe-strip composite pressure (ensures bonding quality) | |
| Punching method | Blade slotting | Laser punching+blade slotting, dual punching modes in one machine | |
| Winding method | Standard dual-station winding | Fully automatic winding system integrating cutting, roll change, core replacement and packaging | |
Simple Operation

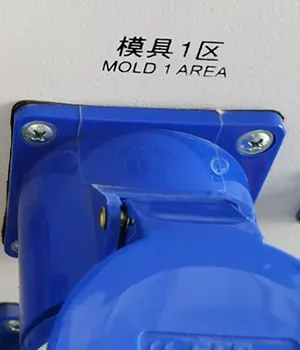

Clear installation instructions

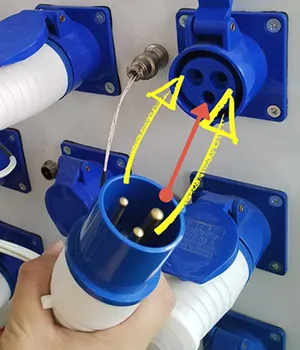

Easy-to-understand assembly

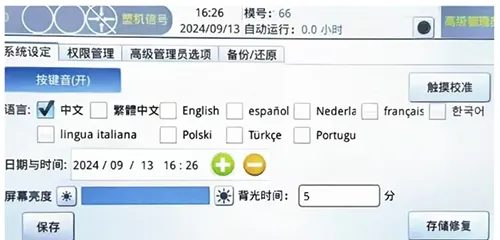

Customizable language options support- Fast Production Start-Up
No separate dripper supplier or dripper injection molding machine is required. The production line synchronously manufactures the PE outer hose, inlaid continuous strip drippers, and color stripes in a single process. With one complete equipment purchase, the line can be put into production immediately after installation. - Fast Installation
Quick-connection fitting design allows efficient assembly and commissioning without complex tools or specialized skills. Operators can complete installation rapidly, greatly reducing setup time and labor costs. - Easy Commissioning
Integrated automatic control ensures intuitive operation. Production can typically begin after one day of training. The user-friendly interface enables even first-time operators to run the line efficiently.
The production line supports dual punching modes. Punching spacing and production speed can be monitored and adjusted remotely via video inspection, enhancing adaptability and flexibility to meet diverse market requirements.

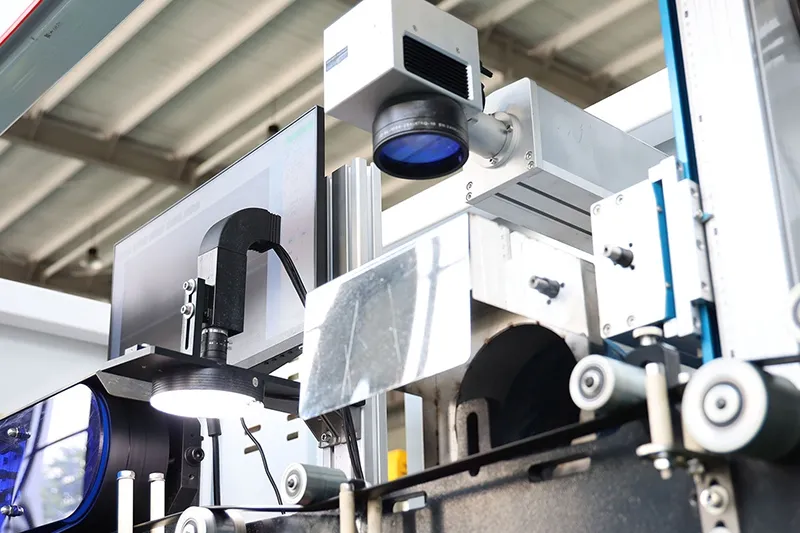

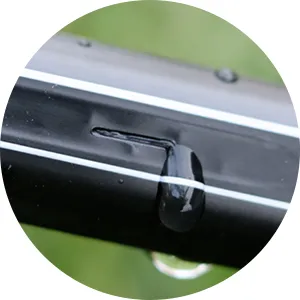

Laser punching
High precision with no deformation, no burrs, no surface damage, and no leakage.

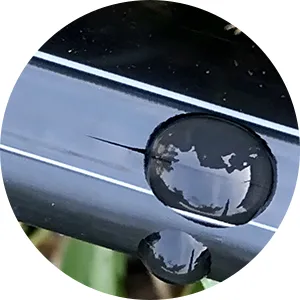

Blade punching
Servo-driven blade punching ensures accurate hole positioning with low operating cost and easy maintenance. The punching method helps prevent reverse siphoning and provides reliable anti-clogging performance.

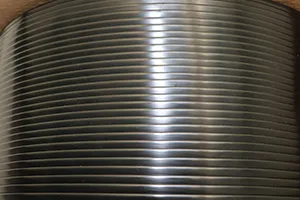

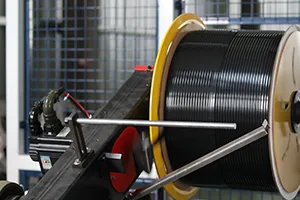

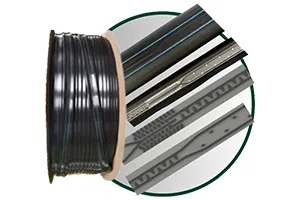

We also supply drip tapes (T-TAPE)
