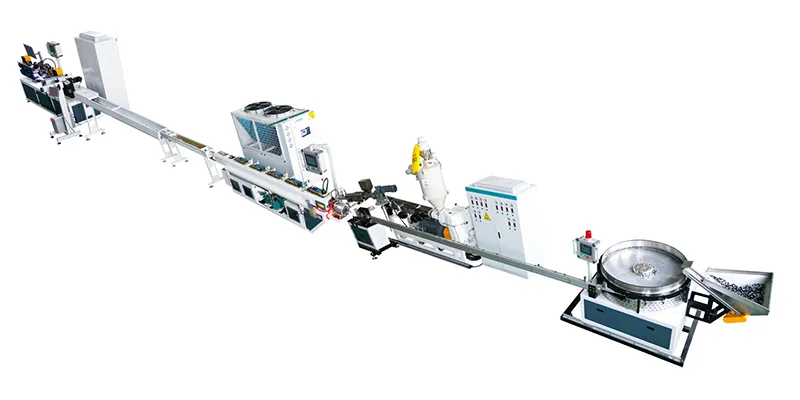

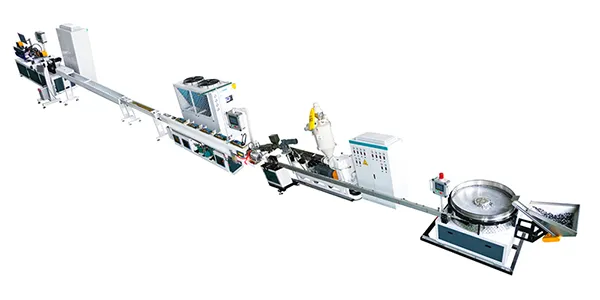

Flat PC Dripper Irrigation Pipe Making Machine
Polyethylene pipe extrusion line for producing driplines with pressure compensating (PC) flat emitters
The flat pc dripper irrigation pipe making machine is a fully automatic extrusion system designed for manufacturing water-saving drip irrigation pipes with uniform flow performance. The production line enables consistent discharge under varying operating pressures, significantly improving irrigation efficiency and crop yield.
Product Applications
Main Components

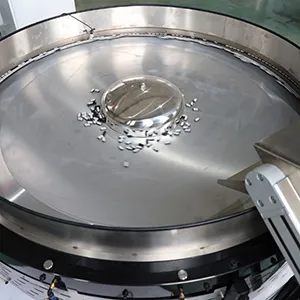

Dripper sorting disc

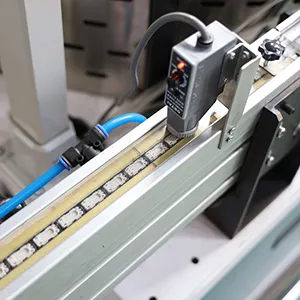

Dripper conveying unit

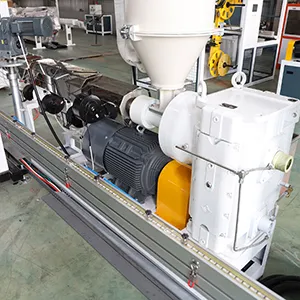

Extruder

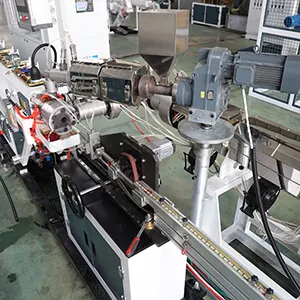

Die head

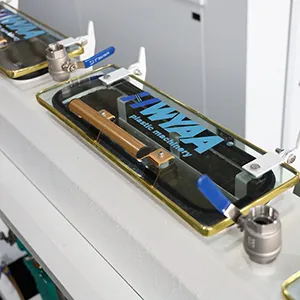

Vacuum sizing tank and cooling water tank

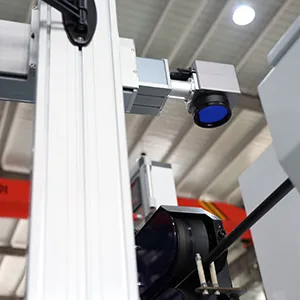

Laser marking unit

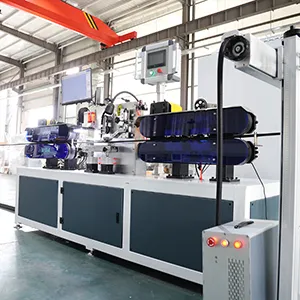

Integrated haul-off and punching unit

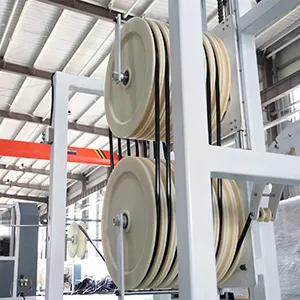

Drip irrigation pipe storage system

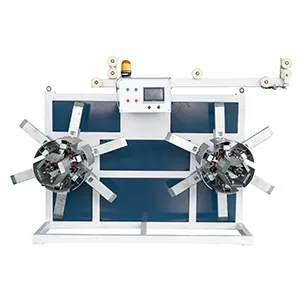

Dual-station standard coiler

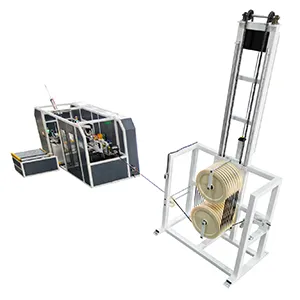

Fully automatic coiling and strapping system
Technical Parameters
Product Parameters
- ItemSpecification
- Drip irrigation tape diameterØ16mm/Ø22mm/Ø25mm
- Drip irrigation tape wall thickness0.9-1.2mm
Machine Parameters
- ItemSpecification
- Single-screw extruder ASJ-75/32
- Designed production speed60m/min (300mm dripper spacing)
- Production line center height1000mm
- Dripper detection speed400pcs/min
- Dripper spacing100-1000mm
- Punching speed2000 cycles/min
- Punching methodMechanical punching
- Drip irrigation tape roll length500-2500m
- Total installed power95kW
- Max. extrusion output120kg
- Production line dimensions (L×W×H)25×2×3m
- Total line weightApprox. 6000kg
Key Features
- High-precision servo control system with imported PLC: Ensures stable and controllable production speed, accurate and consistent dripper spacing, and a product qualification rate exceeding 99%.
- Fully automated production line: From material feeding and online inspection to coiling, the integrated automation significantly reduces labor dependence, lowers operating costs, and improves overall production efficiency.
- Patented flat pressure compensating dripper structure: The produced drip irrigation pipes maintain uniform discharge under different terrains and pressure ranges (e.g. 1.0-4.0bar), significantly enhancing irrigation uniformity and achieving water savings of more than 30%.
- Flexible customization capability: Supports customized dripper spacing, tape width, color, and printing to meet specific crop and application requirements, enabling customers to address diverse irrigation scenarios and expand market opportunities.
Projects
A flat dripper irrigation pipe making machine installed for a customer in Russia received high satisfaction feedback, with plans to purchase additional production lines.

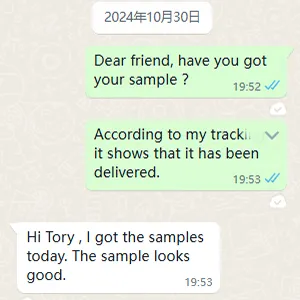

A customer in India confirmed satisfaction after receiving samples produced by the production line.
Founded in 2010 and backed by 30 years of industry expertise, HWYAA is an experienced manufacturer specializing in irrigation pipe and plastic film blowing machinery. We hold ISO9001:2015 certification and 40+ patents, delivering, high-performance plastic extrusion lines and blown film machines to clients across the Middle East, Southeast Asia, Europe, and the Americas.
