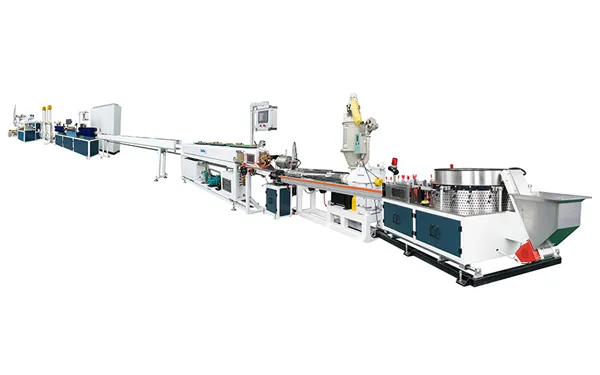

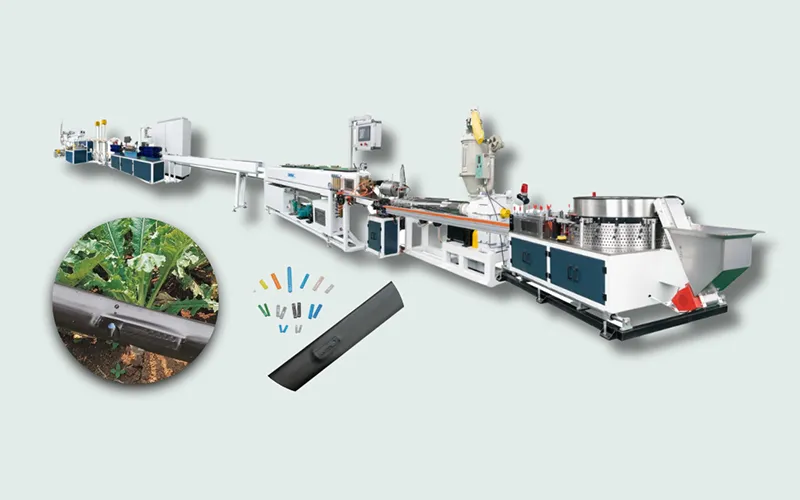

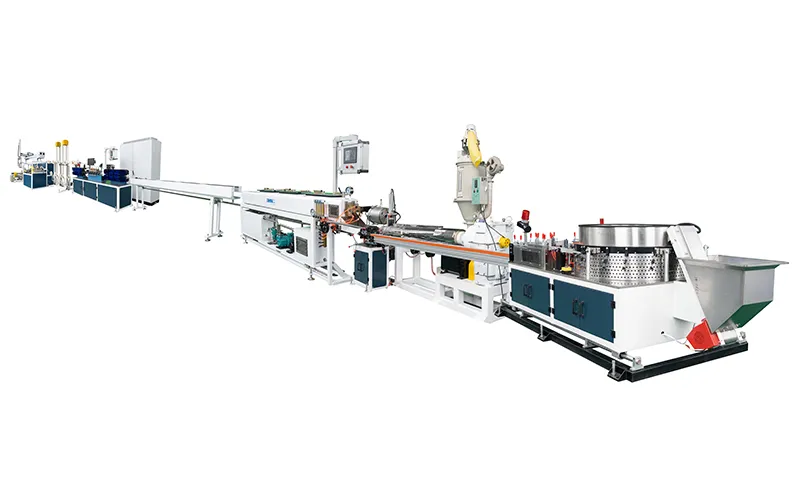

Flat Dripper Irrigation Pipe Making Machine
Polyethylene pipe extrusion line for producing driplines with flat emitters

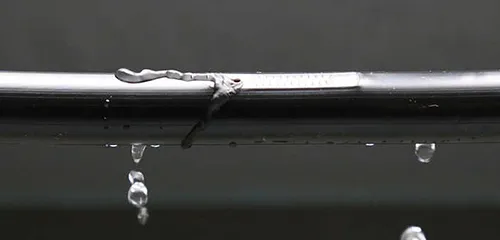

Flat dripper irrigation pipe is a widely used water-saving product in drip irrigation systems. Flat emitters with labyrinth flow paths are inlaid inside the plastic pipe at defined intervals, allowing water to flow through micro-channels and be delivered directly to the soil for crop irrigation. Through micro outlets, water is discharged slowly and uniformly near the root zone, ensuring efficient and controlled irrigation. Typically, flat drippers are inlaid into the inner wall of black PE hose, forming an integrated drip tape with reliable performance and long service life.
The production line is equipped with an injection molding unit for flat dripper manufacturing. Dripper length options include 27mm and 33mm, with common configurations ranging from 25-27mm.

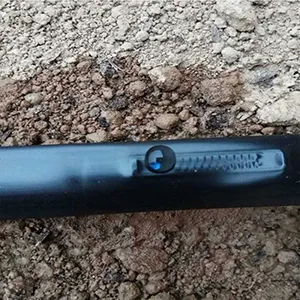

Flat dripper irrigation pipe is suitable for flat terrain and short-distance irrigation scenarios, particularly for seasonal crops. It is widely applied in drip irrigation of agricultural crops such as cotton, as well as fruit, vegetables, trees, and flowers.

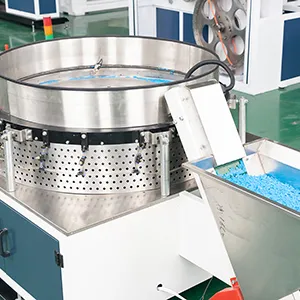

Dripper sorting unit

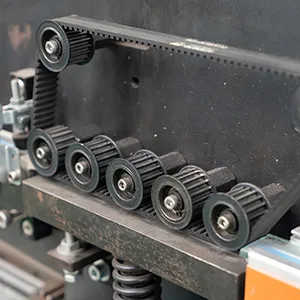

Dripper conveying unit

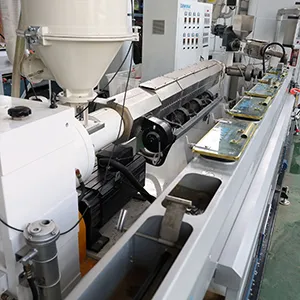

Extruder

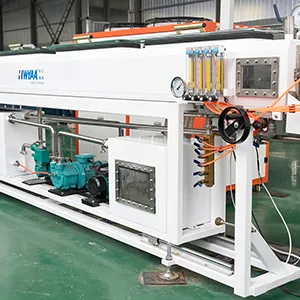

Vacuum sizing tank

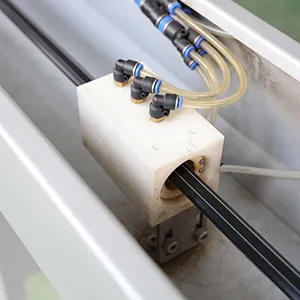

Water cooling tank

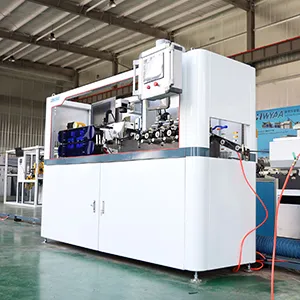

Haul-off and punching unit

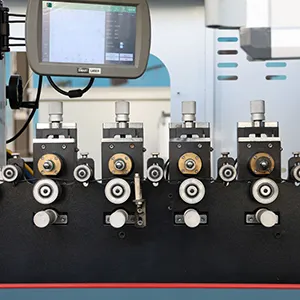

Video inspection system

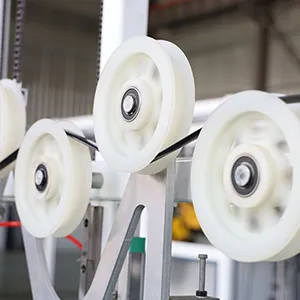

Traction unit

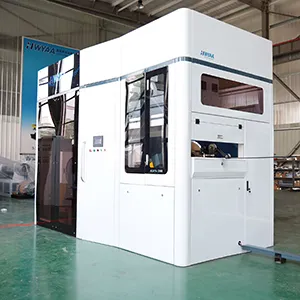

Fully automatic coiling and packaging system
Product Parameters
| Drop spacing | Inside diameter | Wall thickness | Tolerance |
| 100-1500mm | 12/16/20mm | 0.15-0.8mm | ±0.05mm |
Machine Parameters
- Max. production speed120/250/350m/min
- Production line speed (200/300mm spacing)Ordinary:40-100m/min (0.4-0.8mm); Medium:120-180m/min (0.15-0.3mm); High:300m/min (0.15-0.3mm)
- Max. emitter screening speed2000pcs/min
- Emitter inlaid speed2000pcs/min
- Dripper spacing100/200/300/400/500/1000/1500mm
- Hauling speed300m/min
- Punching speedMechanical punching,2000pcs/min
- Dripper spacing can be customized according to application requirements, enabling precise irrigation, improved water utilization efficiency, and reduced labor input.
- The production line supports stable operation at speeds of up to 350m/min, meeting high-output manufacturing demands.
- Precise control ensures consistent dripper spacing with no deviation.
- A centralized control system ensures stable production, simplified operation, and reliable process management.
- The line can be equipped with dual-station or fully automatic coiling and packaging systems. Reel changeover is supported without stopping the line, while winding pitch, tension, and coil length can be adjusted as required.
A flat dripper irrigation pipe making machine installed for a customer in Russia received high satisfaction feedback, with plans to purchase additional production lines.

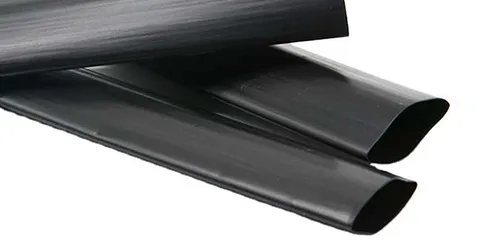

A customer in India confirmed satisfaction after receiving samples produced by the production line.
