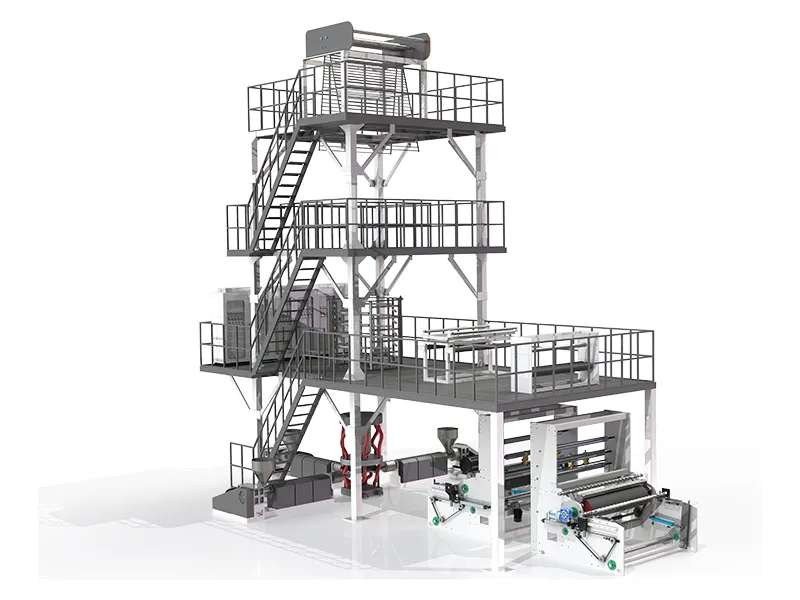

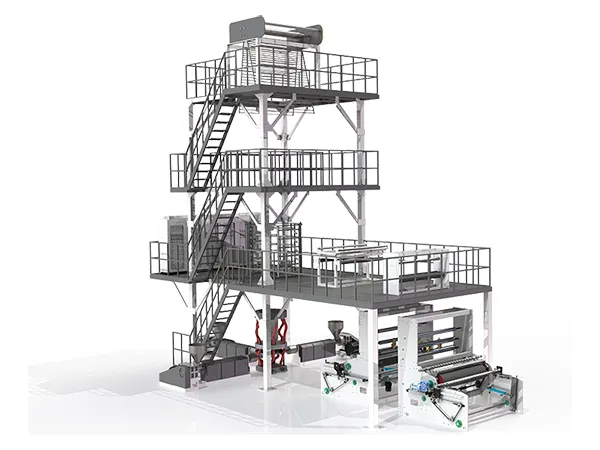

Co-Extrusion Blown Film Machine (1-3 Layers PE/PP Films)
Blown film extrusion line used to produce PE/PP films for shopping bags, garbage bags and plastic packaging bags
The co-extrusion blown film machine is engineered for modern packaging applications and is available in single-layer, double-layer, and three-layer configurations. Using polyethylene (PE, HDPE, MLDPE, LDPE, LLDPE) and polypropylene (PP) as primary raw materials, the blown film line employs advanced extrusion technology to efficiently produce a wide range of packaging films.
Typical end products include:
- Carrier bags (shopping bags, gift bags, etc.)
- Garbage bags (for household, commercial, and industrial use)
- Packaging bags (for food, daily-use products, apparel, etc.)
The co-extrusion line integrates advanced drive systems and optimized heating technology, reducing overall energy consumption by approximately 15-20%. With an integrated, end-to-end design covering the entire process from raw material feeding to finished product output, the system supports fully automated operation and accommodates diverse requirements for film thickness, width, and functional performance. It provides reliable, high-efficiency packaging solutions for food, retail, household, and industrial applications.
Heavy-duty garbage bags
Color-printed shopping bags
High-clarity transparent packaging film

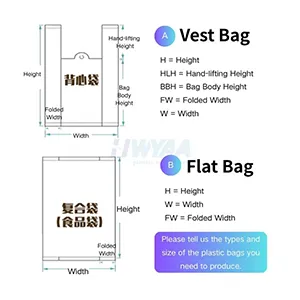

More customization available
Product parameters
- Thickness range 0.01-0.2mm (customizable)
- Width range 200-2000mm (customizable)
- Load capacity 0.5-50kg (depending on thickness and material)
Equipment parameters (customizable)
| Model | |
|
|
|
|
| Basic parameters | Suitable materials | HDPE/LLDPE/LDPE/EVA | |||
| Film width | 800-1600mm | 1200-1800mm | 1400-2200mm | 1600-3000mm | |
| Film thickness | 0.02-0.15mm | ||||
| Max. throughput | 160-240kg/h | 200-260kg/h | 220-300kg/h | 320-380kg/h | |
| Main motor power | 37kw×2 45kw×1 | 45kw×2 55kw×1 | 55kw×2 75kw×1 | 75kw×2 90kw×1 | |
| Gearbox model | 200×2 225×1 | 225×2 250×1 | 250×2 280×1 | 280×2 315×1 | |
| Die head diameter | Ø350/400mm (IBC internal cooling) | Ø400/450mm (IBC internal cooling) | Ø450/500mm (IBC internal cooling) | Ø700mm (IBC internal cooling) | |
| Airflow system diameter | Ø400/450mm | Ø450/500mm | Ø500/550mm | Ø750mm | |
| Blower | 15/18.5kw | 22kw | 30kw | 30kw | |
| Screen changer | Dual-station manual quick change+pressure gauge | ||||
| Traction section | Traction roller width | 1600/1800mm | 2000/2200mm | 2400/2600mm | 3200/3300mm |
| Traction speed | 5-60min | 5-60min | 5-60min | 5-60min | |
| Traction motor power | 1.5kw | 2.2kw | 2.2kw | 3kw | |
| Winding section | Winding method | Fully automatic back-to-back double-sided friction winding | |||
| Winding motor power | 1.5kw×2 | 2.2kw×2 | 2.2kw×2 | 3kw×2 | |
| Winding speed | 5-60min | 5-60min | 5-60min | 5-60min | |
| Control section | Electrical equipment | ABB/Fuling/Siemens/Chint/Omron | |||
| Frequency inverter | ABB/Delta/Huichuan/Fuling (according to customer requirements) | ||||
| Overall dimensions | L×W× H | 12m×9.5m×7m | 12.5m×10.5m×8m | 13m×12.5m×9m | 14m×13.5m×9m |

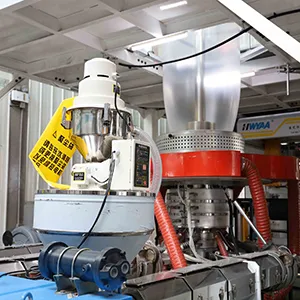

Raw material handling system
Includes hopper, dryer, mixer, and automatic feeding units to ensure stable and consistent material preparation.

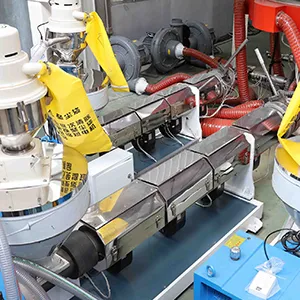

Extruder units
Configured according to the number of layers, with precise control of melt temperature for stable extrusion.

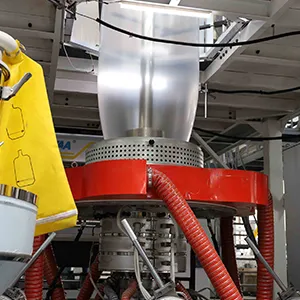

Die head system
Multi-layer co-extrusion die heads ensure uniform material distribution and reliable layer bonding.

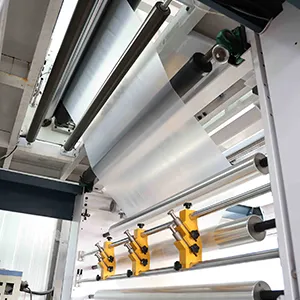

Haul-off system
Precision haul-off units equipped with tension control systems maintain stable film formation.

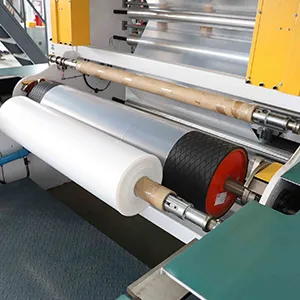

Winding / stacking system
Automatically winds or stacks finished films for convenient handling and downstream processing.

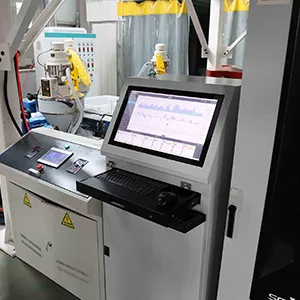

Control system
PLC control cabinet with interface enables stable operation and simplified process management.
A new project customer in Algeria expressed satisfaction with the technical support provided during project implementation.

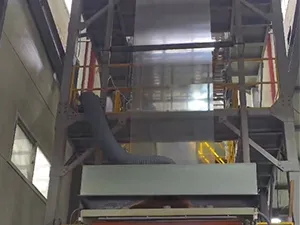

The above video shows on-site service provided for a long-term customer in South Korea to refurbish a double-layer packaging film blown film machine. The service included stabilizing the winding system and optimizing die wear to improve efficiency and product quality. The after-sales support was well received by the customer.
